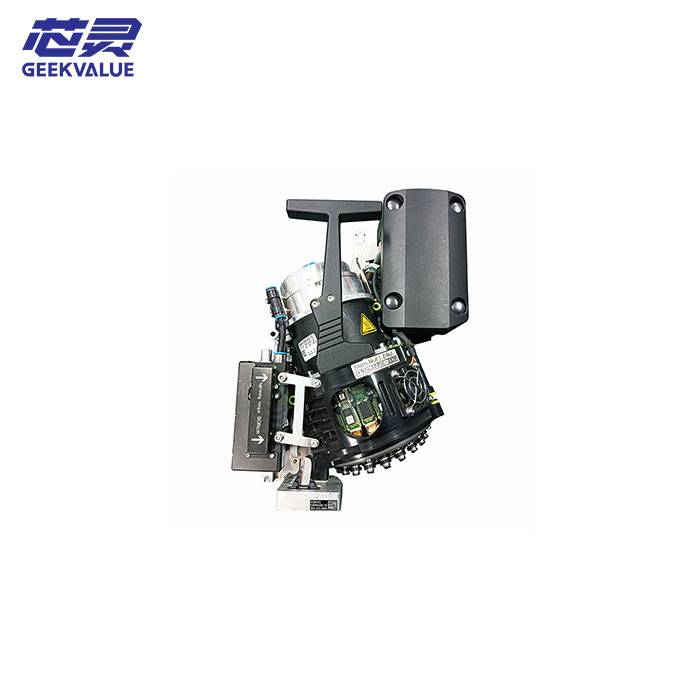

The CP20 P2 (Collect & Place) head, Part Number 03126608, is the advanced evolution of ASM’s high-speed placement technology. Specifically engineered for high-volume manufacturing environments, the P2 version features improved mechanical components and enhanced spindle feedback systems compared to its predecessors.
GEEKVALUE provides this high-tier component to customers who refuse to compromise on yield. We understand that the CP20 P2 is often the heartbeat of a high-speed line, and we ensure that every P/N 03126608 we supply is calibrated to maintain the tightest placement tolerances in the industry.
Technical Specifications
Feature | Technical Data |
Model | SIPLACE CP20 P2 (Generation 2) |
Part Number (P/N) | 03126608 |
Nozzle Positions | 20 (High-Speed Rotary) |
Placement Accuracy | Enhanced Cpk Stability for 0201/01005 |
Spindle Type | Improved P2-Series Spindles |
Application | High-density PCBA (Mobile, Automotive, Medical) |
System Compatibility | SIPLACE X-Series and SX-Series (P2 Config) |
Advanced Performance Features
· P2 Generation Optimization: The 03126608 features upgraded internal components that reduce friction and heat buildup during 24/7 high-speed operation, extending the time between maintenance intervals.
· Superior Component Handling: Optimized for ultra-small components, the CP20 P2 minimizes "tombstoning" and component cracking through more responsive vacuum sensing and controlled placement force.
· High-Resolution Feedback: Enhanced electronic communication between the head and the machine controller allows for faster vision processing and real-time correction of pick-up positions.
· Vibration Suppression: The P2 design incorporates better damping characteristics, ensuring that even at maximum CPH (Chips Per Hour), the machine frame remains stable and placement remains precise.
The GEEKVALUE Advantage: "Excellence in Execution"
1. 360° Total Cost Optimization (TCO)
We recognize that the CP20 P2 is a significant investment. GEEKVALUE helps you optimize the TCO by providing parts that have a longer service life. Our P/N 03126608 units are verified to ensure that the vacuum efficiency and spindle alignment stay within factory limits longer than standard market alternatives.
2. Proven Reliability for 400+ Public Companies
Managing the supply chain for global electronics leaders has taught us that consistency is king. We don't just ship a part; we ship a "Performance Guarantee." Our deep experience with the CP20 P2 allows us to troubleshoot potential integration issues before the part even leaves our facility.
3. Smart Manufacturing Synergy
As a partner in your digital transformation, GEEKVALUE ensures that your high-speed CP20 P2 heads are fully compatible with your line-balancing software. We provide the technical data required to ensure that P/N 03126608 integrates seamlessly into your smart factory ecosystem.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between the original CP20 and the CP20 P2 (03126608)?
A: The P2 version (03126608) includes mechanical refinements in the spindle assembly and improved sensor reliability. It is designed to handle the higher accelerations of modern SIPLACE gantries while maintaining better accuracy for smaller component increments.
Q2: How does GEEKVALUE test the vacuum stability of the 20-spindle P2 head?
A: We use proprietary testing rigs that monitor the vacuum pressure of each of the 20 spindles simultaneously during high-speed rotation. This ensures that no individual spindle has a "micro-leak" that could lead to dropped components on your line.
Q3: Is this head compatible with my existing SIPLACE X-Series machine?
A: The P/N 03126608 is designed for P2-compatible platforms. Our technical team will verify your machine's software version and gantry type to ensure that this specific part number is the correct match for your configuration.
Q4: Does GEEKVALUE provide maintenance kits for the CP20 P2?
A: Yes. In addition to the head itself, we supply the specific P2-series filters, seals, and high-performance lubricants required to keep your 03126608 head operating at peak efficiency.
Q5: How do you handle the specialized logistics for such a sensitive component?
A: We use shock-monitored packaging and ESD-safe environments for all CP20 P2 shipments. Our "Safe-Arrival" protocol ensures that the high-precision calibration of the 20 spindles is protected from the factory floor to your production line.
